Coke oven gas (COG), an important by-product of in coking process, contains valuable components such as hydrogen and carbon monoxide. It serves as a feedstock for producing methanol, LNG, and synthetic ammonia. Refining of COG is crucial for enhancing the overall economic performance of coking plants. ACRE has mastered a range of technologies, including methanol synthesis, liquid ammonia production, and LNG manufacturing.

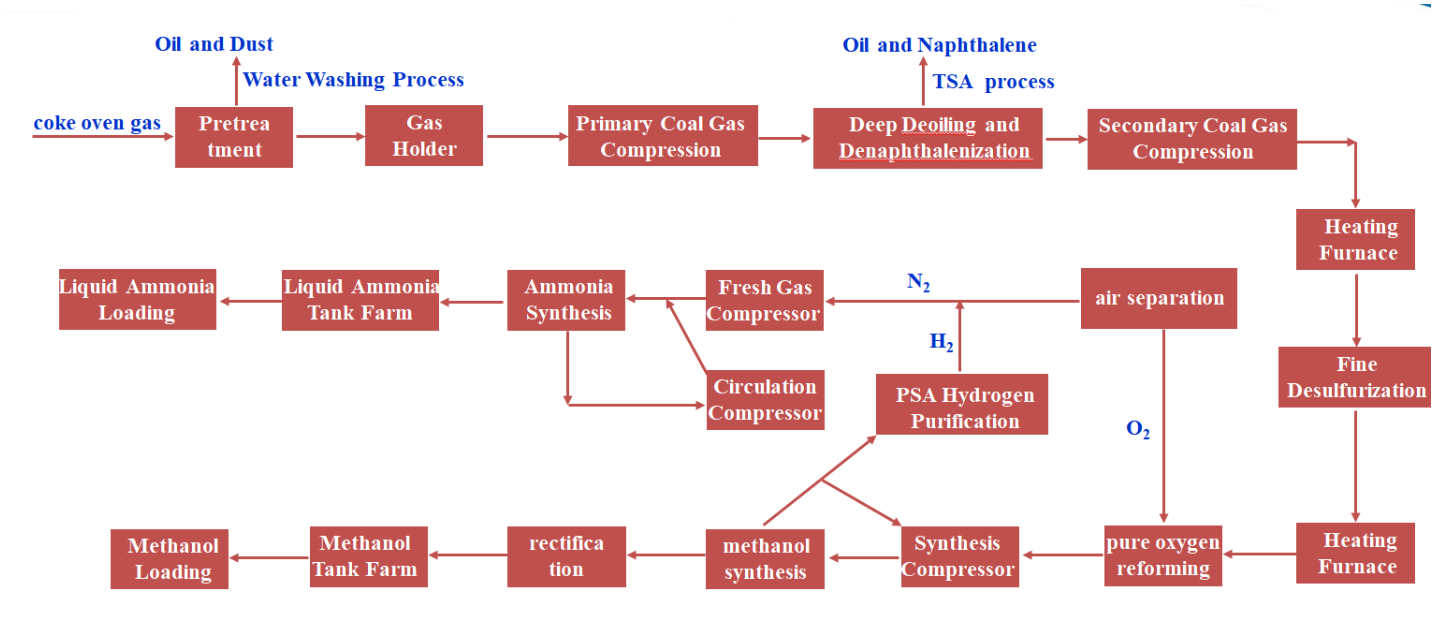

1. ACRE's Methanol and Synthetic Ammonia Co-production Technology

Features:

(1) A proven technology with low energy consumption per unit of product;

(2)Using high-efficiency catalysts for ammonia and methanol synthesis, to deliver high single-pass conversion rates;

(3) High level of automation, to ensure safe and stable operation.

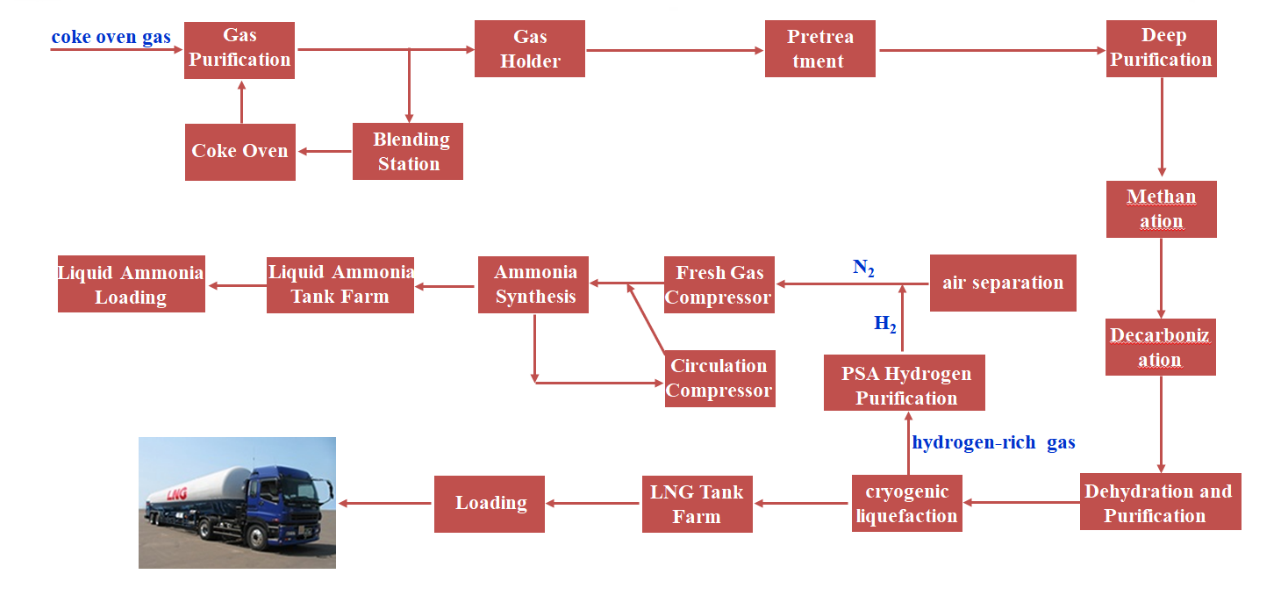

2.ACRE's LNG-Synthetic Ammonia Co-production Technology

Features:

(1) Long operational cycle with excellent oil and dust removal, to minimize compressor clogging;

(2) Advanced methanation process and high-efficiency catalysts, to ensure high conversion rate;

(3) Simplified process flow with easy operation.
